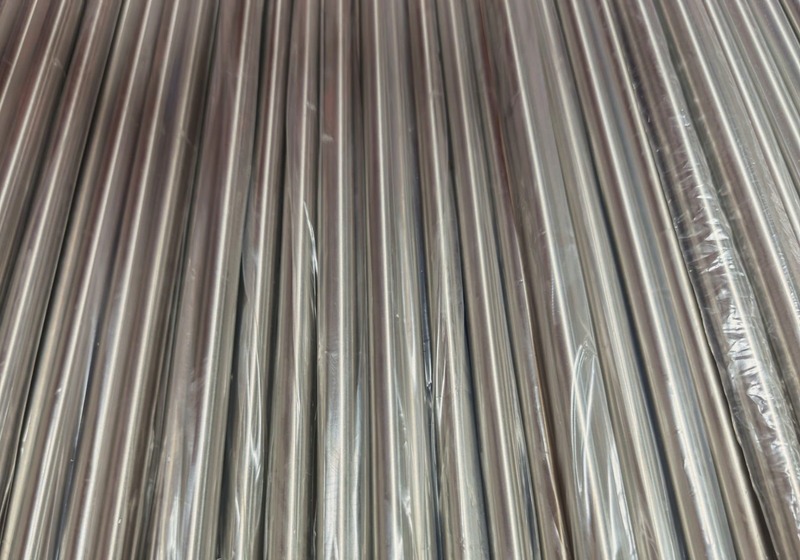

Water Jacket Tube
Water jacket tube is a seamless stainless steel tube used in water cooling jackets of engines, generators, furnaces and industrial equipment. It provides excellent heat exchange performance, corrosion resistance and pressure resistance, ensuring efficient cooling and stable equipment operation.
| Parameter | Value |
| Product Name | Water Jacket Tube |
| Material | 304, 304L, 316L, 316Ti, 321, 347H, 310S, 904L, 2205, 2507, 2520, C276 |
| Outer Diameter | 6mm–89mm / 6.35mm–88.9mm |
| Wall Thickness | 0.2mm–6mm / 0.89mm–4.78mm |
| Shape | Round Tube |
| Density | 7.93 g/cm³ (304/304L/321), 7.98 g/cm³ (310S/316/316L) |
| Application | Machinery, Automobile manufacturing, Shipbuilding, Metal processing, Semiconductor, Photovoltaic, Hydrogen energy, Instrumentation, Biotechnology, Hydraulic equipment, Food industry, Aerospace, Petrochemical, Pressure vessels, Heat exchangers, Automation, Rail transit, High-pressure boilers, Water conservancy & electric power etc. |
| Tolerance | ±0.05mm (limit ±0.02mm) |
| Length | 1000mm–12000mm (cut-to-length available) |
| Surface Finish | External Ra0.6μm / Internal Ra0.4μm |
| Tensile Strength | ≥626–1270 MPa (controllable) |
| Elongation | ≥40%-65% |
| Hardness | HRC 16–38 (controllable) / HV 160–400 (controllable) |
| Yield Strength | ≥300–1020 N/mm² (controllable) |
| Process | Cold rolling, Oil drawing, BA vacuum bright annealing, Ultrasonic cleaning, Straightening, Polishing, Cut-to-length, Degreasing, Customization |
| Features | High precision, High surface finish, High cleanliness, High strength, Oil-free, Non-magnetic |
| Weight Calculation | Per piece or by weighing |
| Brand | SUNLIGHT STEEL |
| Sales Type | Order / Stock |
| Delivery | To designated location |
| Machining | Yes |
