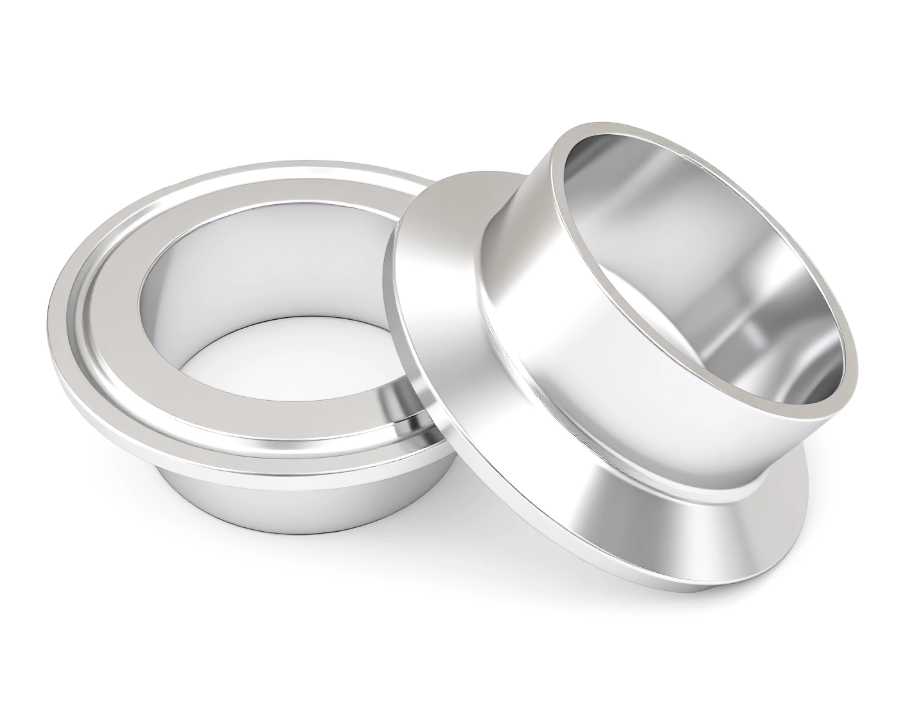

Sanitary Quick Clamp Union
Sanitary quick clamp union (adapter) connecting different hygienic components such as valves, instruments and tank outlets, available in various ferrule combinations, providing flexible and leak-free transition in clean pipelines.
Parameters
| Parameter | Value |
|---|---|
| Product Name | Sanitary Quick Clamp Union / Adapter |
| Material | 304, 316L (1.4404) |
| Size Range | DN15–DN150 (OD Φ19–Φ168mm) |
| Surface Finish | Ra ≤ 0.8 μm |
| Connection | Tri-Clamp to Tri-Clamp / Weld |
| Standard | ISO 2852, DIN 32676 |
| Application | Valve connections, instrument tees, tank outlets |
Specifications
| Item | Detail |
|---|---|
| Type | Union, adapter, ferrule combinations |
| Size Range | DN15–DN150 |
| Sealing | With gasket for leak-free joint |
| Material | 316L standard |
