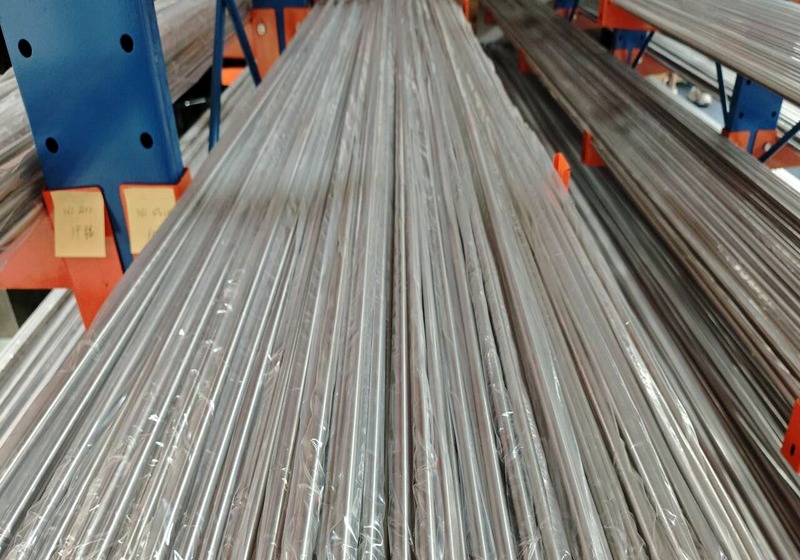

Liquid Cooling Tube
Liquid cooling tube is a seamless stainless steel tube used in liquid cooling systems for heat dissipation, such as data center cooling, new energy vehicle battery cooling and industrial equipment cooling. It offers high thermal conductivity efficiency, corrosion resistance and pressure resistance, ensuring stable cooling performance.
| Parameter | Value |
| Product Name | Liquid Cooling Tube |
| Material | 304, 304L, 316L |
| Outer Diameter | 6mm–89mm / 6.35mm–88.9mm |
| Wall Thickness | 0.2mm–6mm / 0.89mm–4.78mm (thin-wall lightweight) |
| Shape | Round Tube |
| Density | 7.93 g/cm³ (304/304L/321), 7.98 g/cm³ (310S/316/316L) |
| Application | Rack-level liquid cooling piping, high-density liquid cooling network, rigid connection architecture, hose-free design (Rubin core), no-hose/no-cable/no-fan architecture, chip cold plates, closed-loop liquid cooling circuits, full liquid cooling piping systems, single-phase flow channels, two-phase flow channels, D2C cold plate channels, cold plate internal channels, chip-level channels, micro-channel channels, MCCP (micro-channel cold plate), MLCP (micro-channel liquid cooling plate) |
| Tolerance | ±0.05mm (limit ±0.02mm) |
| Length | 300–1200mm (cut-to-length available) |
| Surface Finish | External Ra0.6μm / Internal Ra0.4μm |
| Tensile Strength | ≥626–1270 MPa |
| Elongation | ≥40%–65% |
| Hardness | HRC 16–38 / HV 160–400 |
| Yield Strength | ≥300–1020 N/mm² |
| Process | Cold rolling, Oil drawing, BA vacuum bright annealing, Ultrasonic cleaning, Straightening, Polishing, Cut-to-length, Degreasing, Customization |
| Features | High precision, High surface finish, High cleanliness, High strength, Oil-free, Non-magnetic |
| Weight Calculation | Per piece or by weighing |
| Brand | SUNLIGHT STEEL |
| Sales Type | Order / Stock |
| Delivery | To designated location |
| Machining | Yes |
