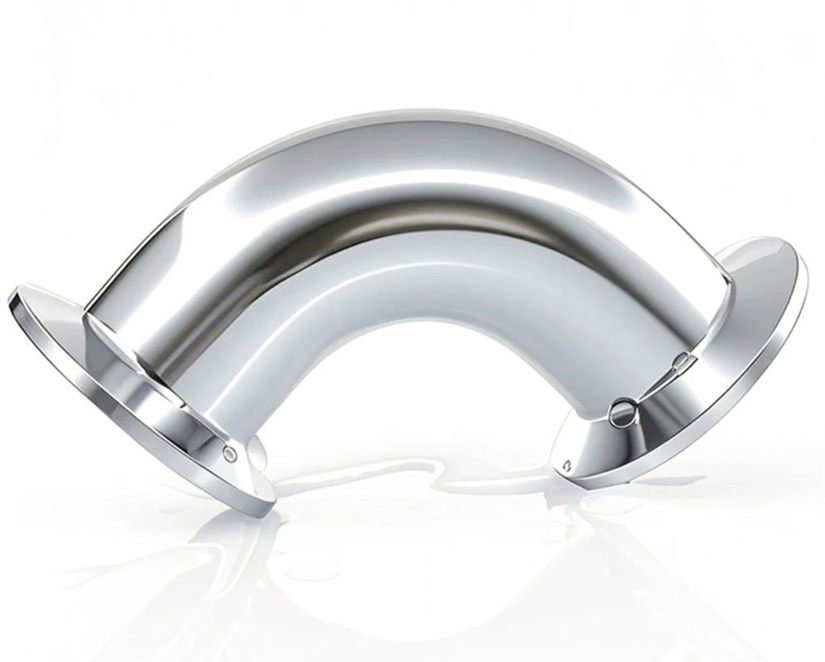

Sanitary Quick Clamp Elbow
Sanitary quick clamp elbow with two tri-clamp ferrule ends, combining the 90° turn with quick disconnect convenience, mirror-polished bore and compact bend radius, ideal for space-limited hygienic process skids and frequent maintenance lines.
Parameters
| Parameter | Value |
|---|---|
| Product Name | Sanitary Quick Clamp 90° Elbow |
| Material | 304, 316L (1.4404) |
| Size Range | DN15–DN150 (OD Φ19–Φ168mm) |
| Wall Thickness | 1.5mm–3.0mm |
| Surface Finish | Ra ≤ 0.8 μm |
| Connection | Tri-Clamp both ends |
| Standard | ISO 2852, DIN 32676 |
| Application | Process skids, dairy, beverage, pharmaceutical |
Specifications
| Item | Detail |
|---|---|
| Type | 90° elbow with clamp ends |
| Radius | Short radius (R=1.0D) |
| Ends | Tri-Clamp ferrule ends |
| Cleanability | Fully cleanable bore |
