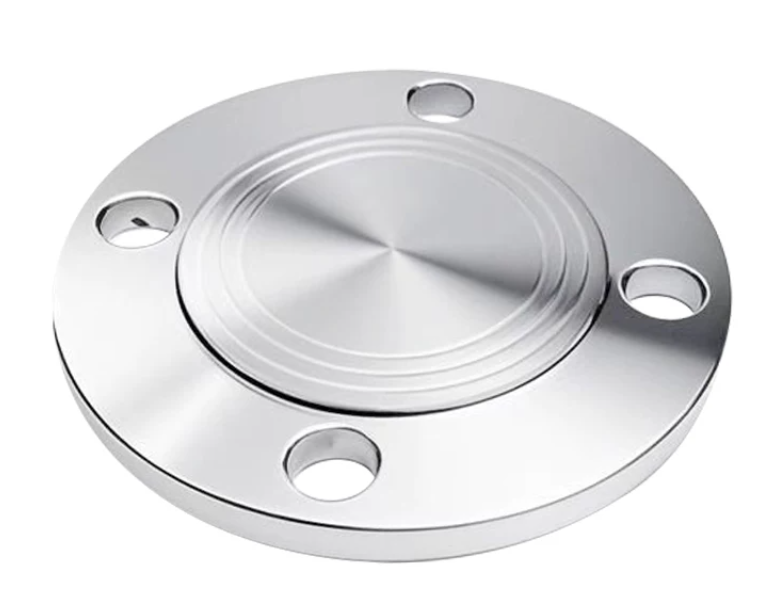

Blind Flange
Stainless steel blind flange with solid plate for blanking off pipe ends, valve openings and pressure vessel nozzles, precision machined bolt holes and sealing face, designed for full pressure rating of the connected piping system.
Parameters
| Parameter | Value |
|---|---|
| Product Name | Blind Flange (BL) |
| Material | 304, 304L, 316, 316L, 321, 2205, 2507 |
| Size Range | NPS 1/2″–24″ (ASME B16.5), up to 60″ (B16.47) |
| Pressure Class | 150# – 2500# |
| Facing | RF / FF / RTJ |
| Standard | ASME B16.5, ASME B16.47, DIN 2527, GB/T 9112 |
| Application | Pipe end blanking, vessel & valve closures, testing |
Specifications
| Item | Detail |
|---|---|
| Type | Solid blind plate |
| Use | Blank off ends, maintenance isolation |
| Inspection | Hydrostatic tested on request |
| Marking | Size, Rating, Material |
