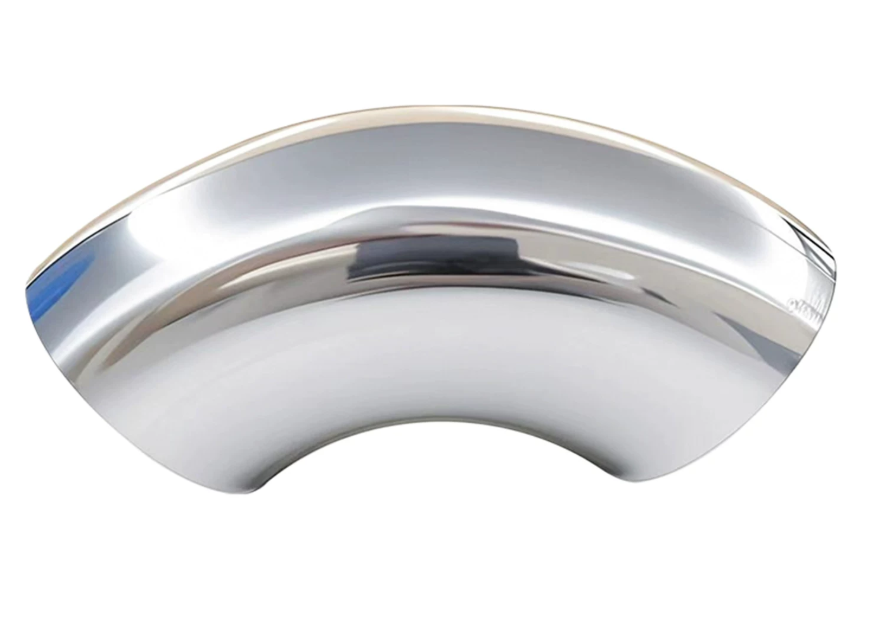

Sanitary 90 Degree Elbow
Sanitary 90° elbow for hygienic pipelines, made of seamless stainless steel tube with mirror-polished inner surface (Ra ≤ 0.8 μm), dead-leg free design and smooth bends ensuring cleanability and CIP/SIP compatibility for food and pharmaceutical applications.
Parameters
| Parameter | Value |
|---|---|
| Product Name | Sanitary 90° Elbow |
| Material | 304, 316L (1.4404) |
| Size Range | DN15–DN150 (OD Φ19–Φ168mm) |
| Wall Thickness | 1.5mm–3.0mm |
| Surface Finish | Ra ≤ 0.8 μm (mirror / food grade) |
| Connection | Tri-Clamp / Butt Weld |
| Standard | ISO 2852, DIN 32676, GB/T 968 |
| Application | Food & beverage, dairy, pharmaceutical, biotech, cosmetics |
Specifications
| Item | Detail |
|---|---|
| Angle | 90° |
| Radius | Short radius (R=1.0D), long radius available |
| Ends | Tri-Clamp ferrule ends / weld ends |
| Sanitary Grade | FDA / 3A compliant materials |
