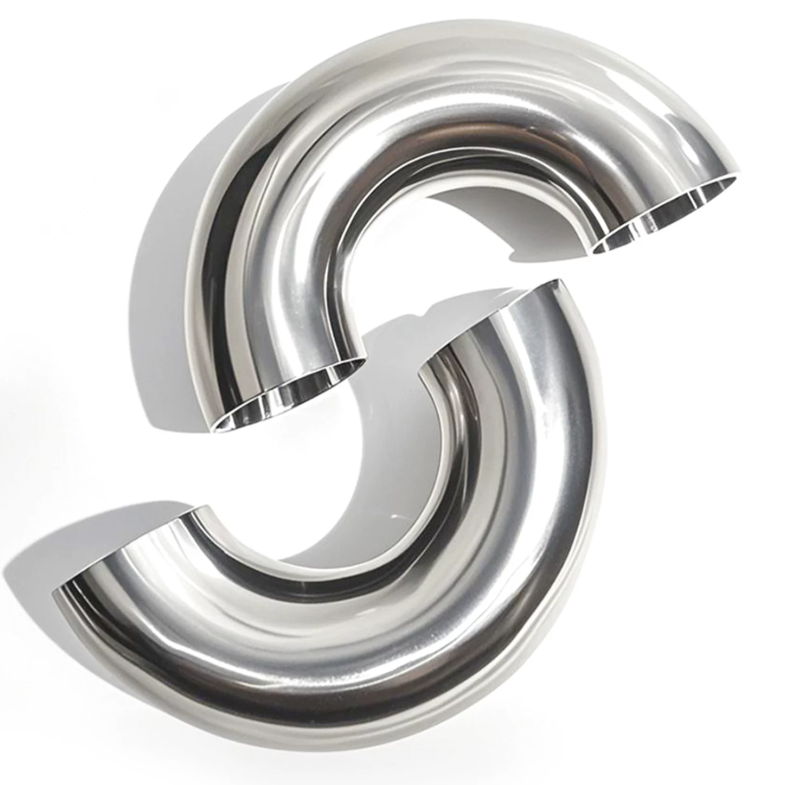

Sanitary U-Bend
Sanitary 180° U-bend (return bend) for hygienic pipelines, mirror-polished inner bore with no weld seams on the bend, providing complete drainage and easy cleaning in CIP systems for dairy, beverage and pharmaceutical plants.
Parameters
| Parameter | Value |
|---|---|
| Product Name | Sanitary 180° U-Bend (Return Bend) |
| Material | 304, 316L (1.4404) |
| Size Range | DN15–DN150 (OD Φ19–Φ168mm) |
| Wall Thickness | 1.5mm–3.0mm |
| Surface Finish | Ra ≤ 0.8 μm |
| Connection | Tri-Clamp / Butt Weld |
| Standard | ISO 2852, DIN 32676 |
| Application | Dairy, beverage, pharmaceutical, food processing |
Specifications
| Item | Detail |
|---|---|
| Angle | 180° |
| Radius | R=1.5D standard, R=3D available |
| Ends | Tri-Clamp ferrule ends / weld ends |
| Drainability | Self-draining design for CIP |
