Instrumentation Tube
Instrumentation tube is a high-precision seamless stainless steel tube used for connecting instruments, transmitters and control systems in process control applications. It offers tight tolerances, smooth internal surface and high pressure resistance, commonly applied in oil & gas, chemical, power and automation industries for impulse lines and analyzer tubing.
Instrumentation Tube
Precision cold-drawn tube with polished surface for ferrule-type instrument connections.
Product Overview
Instrumentation tube is cold-drawn in the soft state with a mechanically polished outer surface and a clean inner bore. Its tight tolerance and high precision make it fully compatible with ferrule-type (compression) fittings, ensuring leak-free connections in instrument and analyzer tubing runs.

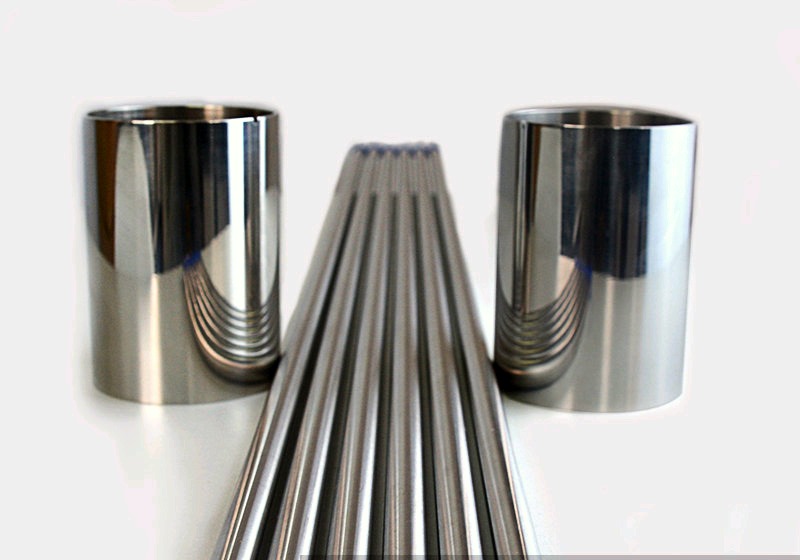

Product Gallery
Key Features
- Designed for ferrule / compression fitting connections
- High dimensional precision and tight tolerances
- Polished outer surface, clean inner surface
- Soft annealed for easy bending and installation
- Wide range of imperial and metric sizes
- Suitable for gas, chemical and hydraulic instrumentation
Technical Specifications
| Material | 304, 316, Monel400, 904L, Incoloy825/800, Inconel600/625, HC276 |
| Process | Cold-rolled, cold-drawn, soft state, mechanical outer polishing |
| OD Range | 1/16" – 1" (imperial) / 2 mm – 25 mm (metric) |
| Wall Thickness | 0.5 mm – 3 mm |
| Features | Tight tolerance, high precision, polished outer surface, clean inner surface, designed for ferrule/compression fitting connections |
| Applications | Instrumentation, petrochemical, pharmaceutical, gas systems, pressure vessels, on-line analysis |
| Packaging | Bundled, anti-vibration and anti-abrasion |
Imperial Instrumentation Tube (inch)
| OD (inch) | Wall (inch) | Ordering Code |
|---|---|---|
| 1/16 | 0.015 | SMT 1/16X0.015-316L-MP |
| 1/8 | 0.028 | SMT 1/8X0.028-316L-MP |
| 1/4 | 0.035 | SMT 1/4X0.035-316L-MP |
| 3/8 | 0.049 | SMT 3/8X0.049-316L-MP |
| 1/2 | 0.049 | SMT 1/2X0.049-316L-MP |
| 5/8 | 0.065 | SMT 5/8X0.065-316L-MP |
| 3/4 | 0.065 | SMT 3/4X0.065-316L-MP |
| 1 | 0.083 | SMT 1X0.083-316L-MP |
Metric Instrumentation Tube (mm)
| OD (mm) | Wall (mm) | Ordering Code |
|---|---|---|
| 2 | 0.5 | SMT 2X0.5-316L-MP |
| 3 | 0.5 | SMT 3X0.5-316L-MP |
| 4 | 0.5 | SMT 4X0.5-316L-MP |
| 6 | 0.5–1.0 | SMT 6X1-316L-MP |
| 8 | 0.5–1.0 | SMT 8X1-316L-MP |
| 10 | 0.5–1.0 | SMT 10X1-316L-MP |
| 12 | 0.5–1.0 | SMT 12X1-316L-MP |
| 14 | 1.0–2.0 | SMT 14X2-316L-MP |
| 16 | 1.0–2.0 | SMT 16X2-316L-MP |
| 18 | 1.0–2.0 | SMT 18X2-316L-MP |
| 25 | 1.0–3.0 | SMT 25X3-316L-MP |
