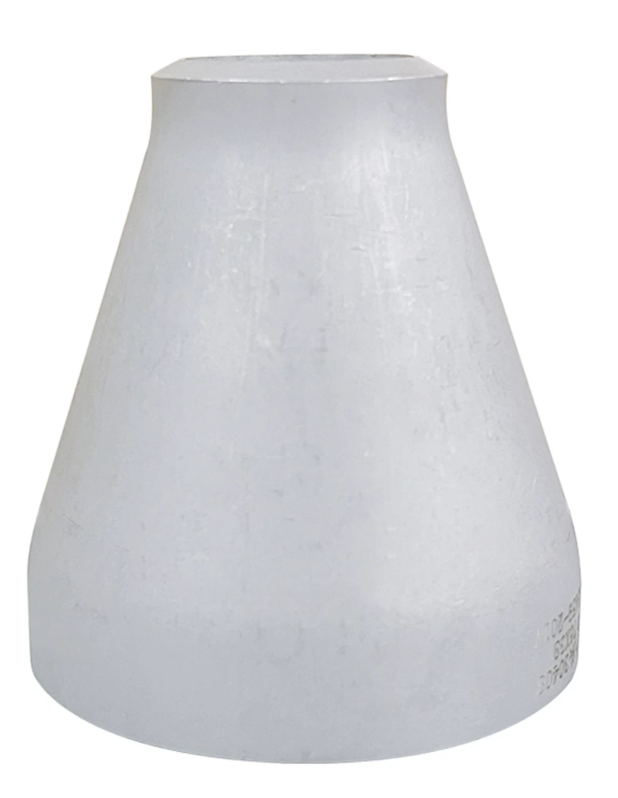

Reducer
Stainless steel concentric and eccentric reducers connecting pipes of different diameters, reducing flow velocity loss and turbulence, with smooth internal transition and full-size dimensional accuracy per international standards.
Parameters
| Parameter | Value |
|---|---|
| Product Name | Concentric / Eccentric Reducer |
| Material | 304, 304L, 316L, 316Ti, 321, 347H, 310S, 904L, 2205, 2507 |
| Size Range | DN15×10 – DN2000×1800 (NPS 1/2″×3/8″–80″×72″) |
| Wall Thickness | SCH5S–SCH160 / 0.5mm–25mm |
| Type | Concentric (same centerline), Eccentric (flat bottom) |
| Connection | Butt Weld (BW) |
| Standard | GB/T 12459-2017, ASME B16.9-2018, GB/T 13401 |
| Application | Pump & valve connections, petrochemical, water systems |
Specifications
| Item | Detail |
|---|---|
| Type | Concentric Reducer, Eccentric Reducer |
| Size Range | Large end DN15–DN2000 |
| Reduction Ratio | One to several nominal sizes smaller |
| Ends | Beveled weld ends |
