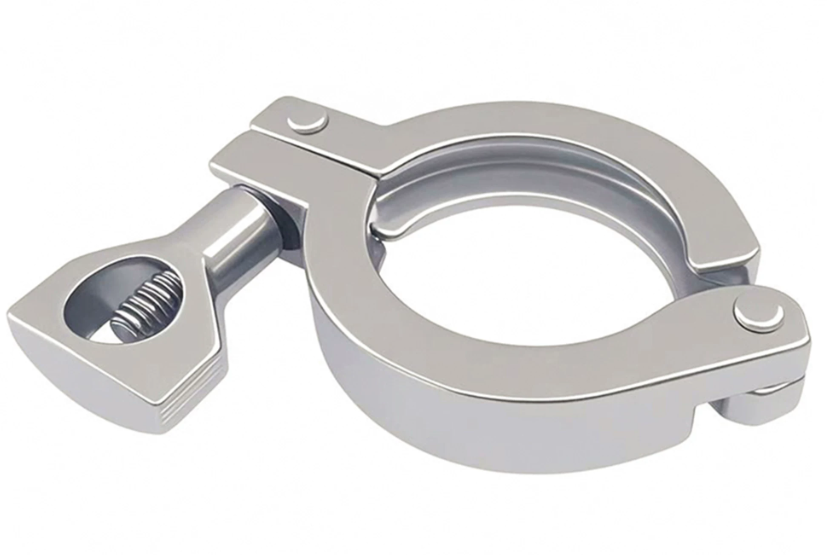

Sanitary Clamp
Sanitary tri-clamp ferrule and clamp assembly for quick, tool-free connection of hygienic piping, two-part design with silicone/EPDM gasket providing leak-free sealing, fully dismantlable for CIP and sterilization cycles.
Parameters
| Parameter | Value |
|---|---|
| Product Name | Sanitary Tri-Clamp (Clamp & Ferrule) |
| Material | Clamp: 304 SS; Ferrule: 304/316L; Gasket: Silicone / EPDM / PTFE |
| Size Range | DN15–DN150 (Φ34–Φ168mm) / 1/2″–6″ |
| Pressure Rating | Up to 1.6 MPa (16 bar) |
| Surface Finish | Ra ≤ 0.8 μm |
| Sealing | Silicone / EPDM / PTFE gasket |
| Standard | ISO 2852, DIN 32676, 3A |
| Application | Quick disconnect lines, dairy, beverage, pharma |
Specifications
| Item | Detail |
|---|---|
| Design | Tri-Clamp quick disconnect |
| Gasket | Silicone, EPDM, PTFE, FKM available |
| Pressure | Max 1.6 MPa |
| Sanitary Grade | FDA approved gasket materials |
