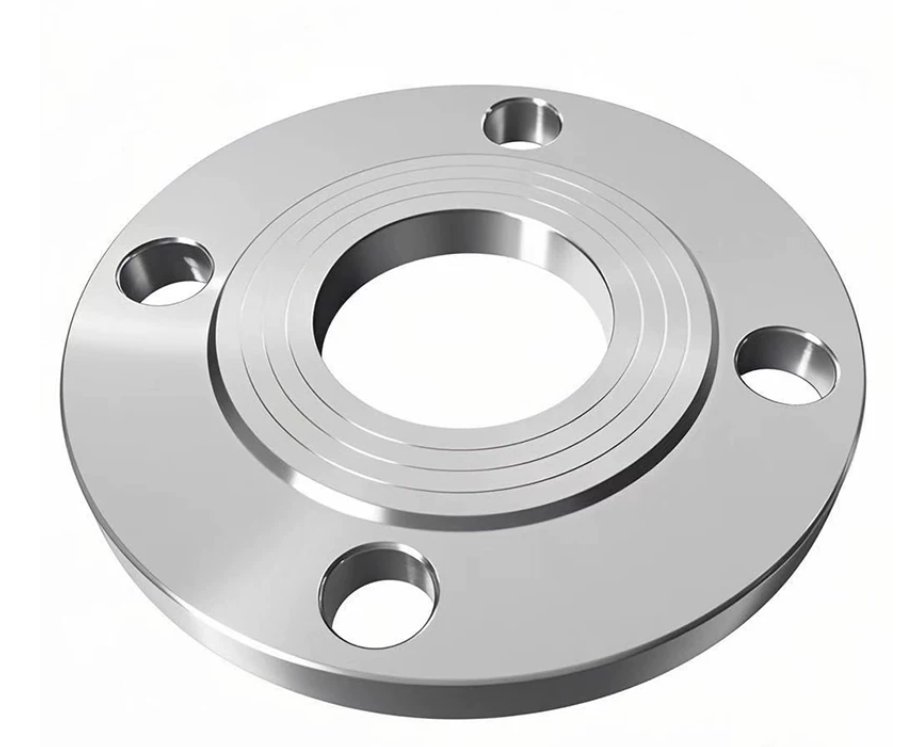

Slip-on Flange
Stainless steel slip-on flange slid over the pipe and welded both inside and outside, offering easy alignment and cost-effective installation for low and medium pressure piping systems, with precise bolt circle and smooth sealing face.
Parameters
| Parameter | Value |
|---|---|
| Product Name | Slip-on Flange (SO) |
| Material | 304, 304L, 316, 316L, 321, 2205, 2507 |
| Size Range | NPS 1/2″–24″ |
| Pressure Class | 150#, 300#, 600# |
| Facing | RF / FF |
| Standard | ASME B16.5, DIN 2573/2576, JIS B2220, GB/T 9112 |
| Application | Water, air, low-pressure process piping |
Specifications
| Item | Detail |
|---|---|
| Installation | Weld inside + outside |
| Alignment | Slip over pipe, easy alignment |
| Tolerance | Per ASME B16.5 |
| Marking | Size, Rating, Material |
