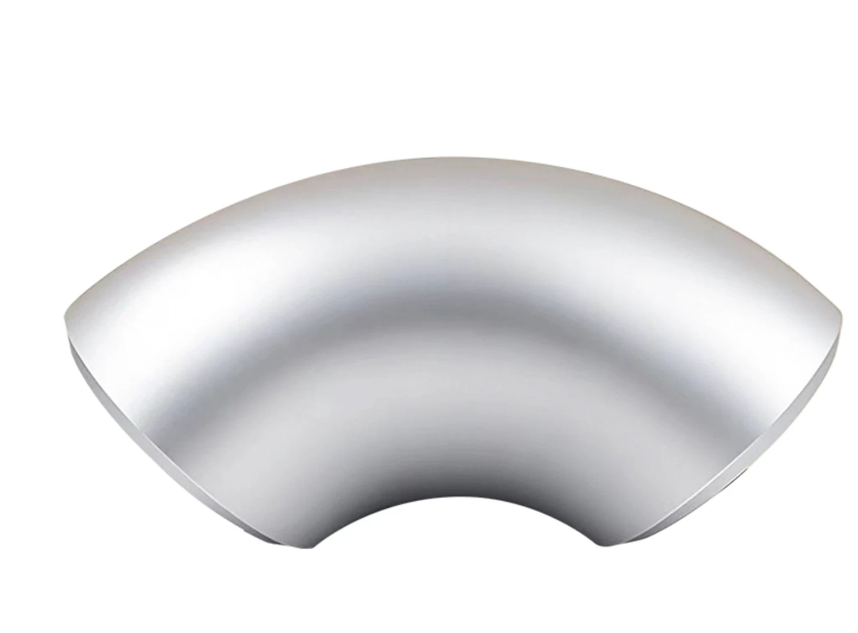

Elbow
Stainless steel butt weld elbow for 90° and 45° pipe direction changes, available in long radius (R=1.5D) and short radius (R=1.0D) types. Manufactured by seamless or welded pipe forming with precise wall thickness and smooth surface, widely used in petrochemical, oil & gas, power, marine and food processing pipelines.
| Parameter |
Value |
| Product Name |
90° / 45° Butt Weld Elbow |
| Material |
304, 304L, 316L, 316Ti, 321, 347H, 310S, 904L, 2205, 2507 |
| Size Range |
DN15–DN800 (NPS 1/2″–32″) |
| Wall Thickness |
SCH5S–SCH160 / 0.5mm–20mm |
| Bending Radius |
Long Radius 1.5D / Short Radius 1.0D |
| Connection |
Butt Weld (BW) |
| Standard |
GB/T 12459-2017, ASME B16.9-2018, ASTM A403, JIS B2311/2312 |
| Application |
Petrochemical, oil & gas, power generation, marine, chemical, food |
