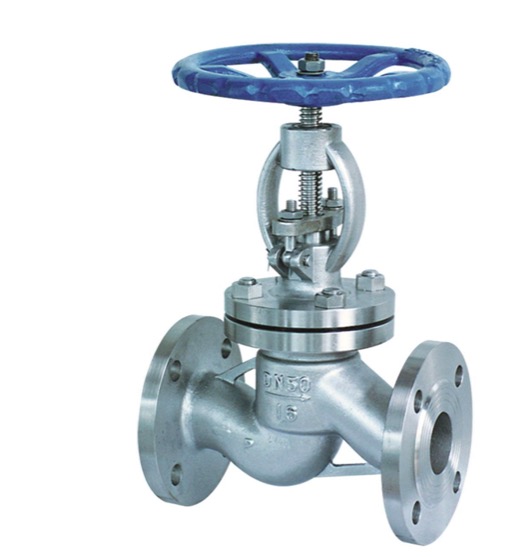

A globe valve is a linear-motion isolation and throttling valve used to regulate flow in piping systems. SUNLIGHT supplies cast steel and stainless steel globe valves with bolted or pressure-seal bonnets, available in threaded, socket-weld, butt-weld and flanged ends. The globe-style disc provides reliable shut-off and accurate flow control for high-pressure and high-temperature service.
Key Features
- Body material: WCB, WC6, WC9, CF8 (304), CF8M (316), CF3M (316L), alloy 20
- Size range: 1/2″ – 20″ (DN15 – DN500)
- Pressure rating: Class 150 – Class 2500, PN10 – PN420
- Temperature range: -196°C (cryogenic) to +600°C
- Stem: outside screw & yoke (OS&Y), rising stem, 13Cr or 316
- Seat: integral or replaceable, PTFE / RPTFE / metal-seated on request
- Design standard: API 600, ASME B16.34; face-to-face: ASME B16.10; flanges: ASME B16.5
Typical Applications
Steam systems, boiler feedwater, oil & gas, chemical and petrochemical, power generation, refining and any service requiring accurate throttling.
